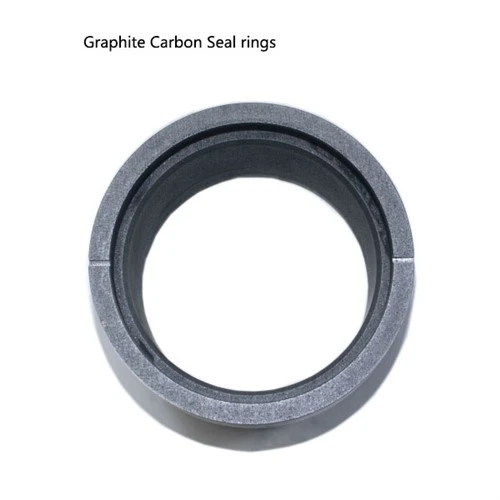

Graphite Carbon Ring Seals for Industrial Sealing Applications
IUGIS Carbon supplies graphite carbon ring seals for industrial equipment requiring reliable sealing performance, low friction, wear resistance and compatibility with demanding operating environments.
Graphite Carbon Ring Seal Material Selection
Resin-Impregnated Graphite:Resin impregnation can reduce open porosity and modify the material's sealing and mechanical characteristics.It may be considered for applications where reduced permeability and improved structural integrity are important.
Antimony-Impregnated Graphite:Antimony impregnation can increase mechanical strength and may be suitable for selected sealing and wear applications.
Metal-Impregnated Graphite:Copper, silver or other metal impregnation systems can be considered where specific electrical, thermal or mechanical properties are required.
High-Density Carbon Graphite:Higher-density grades can provide improved material integrity and reduced open porosity compared with lower-density materials.
A carbon graphite ring does not operate independently. The performance of the sealing pair depends on:
Carbon Ring + Mating Ring + Surface Finish + Contact Pressure + Speed + Medium.
The mating component may be manufactured from stainless steel, hardened steel, tungsten carbide, silicon carbide, ceramic, or other engineered sealing materials. The right combination depends on your application.
Why Mating Material Matters:Two identical graphite rings can show different wear rates when used against different counterfaces. So when requesting a quotation, please provide the mating ring material or shaft material whenever possible.
Ring Geometry & Dimensional Accuracy
For carbon graphite sealing rings, dimensional accuracy is often directly related to installation and sealing performance.
Typical dimensions include:
Inside Diameter (ID)
Determines the internal fit with the shaft or mating component.
Outside Diameter (OD)
Determines housing or assembly compatibility.
Ring Thickness
Controls the installed geometry and available wear allowance.
Face Width
Important for sealing contact area.
Flatness
Critical where the ring forms a planar sealing interface.
Concentricity
Important for rotating components where uneven contact can increase wear.
Dry Running vs. Liquid-Lubricated Ring Seals
Carbon graphite rings may be used in different lubrication environments, but the appropriate material grade and operating limits can differ.
|
Condition |
Main Considerations |
|
Dry Running |
Friction, PV, heat generation, mating surface and material grade |
|
Water-Lubricated |
Water chemistry, corrosion, film formation and material compatibility |
|
Oil-Lubricated |
Fluid viscosity, temperature and lubrication regime |
|
Chemical Medium |
Chemical concentration, temperature and graphite compatibility |
|
High Temperature |
Graphite grade, atmosphere, thermal expansion and oxidation |
|
Vacuum / Controlled Atmosphere |
Outgassing, purity and material stability |
Custom Graphite Carbon Ring Seal Manufacturing
We manufacture custom carbon graphite sealing rings based on engineering drawings, CAD files, existing samples, part numbers, material specifications, or equipment requirements.
Custom Options:
Dimensions:ID, OD, thickness, face width, and groove dimensions.
Geometry:Flat, stepped, grooved, flanged, split, or special-profile rings.
Material:Carbon graphite, resin-impregnated, antimony-impregnated, or application-specific grades.
Finish:Standard machined, ground, precision-finished, or application-specific surface finish.
Quality Control for Graphite Carbon Ring Seals
For sealing rings, quality control must cover both material consistency and sealing geometry. Depending on the project, our inspection process includes:
Material Inspection
We verify graphite grade, density, hardness, flexural/compressive strength, purity/ash content, and impregnation condition against the specified requirements.
Dimensional Inspection
We measure ID, OD, thickness, face width, concentricity, flatness, parallelism, groove dimensions, and surface finish to ensure compliance with the approved drawing.
Appearance Inspection
We examine every component for cracks, chipping, edge damage, visible defects, and surface irregularities before shipment.
Replacement Ring Development: Sample → Measurement → Trial → Production
For replacement carbon graphite rings, a physical sample can often accelerate technical confirmation.
Sample / Drawing Review
Confirm the existing ring dimensions and application.
Application Review
Confirm pressure, speed, temperature, medium and mating material.
Material Selection
Select a graphite grade appropriate for the operating environment.
Dimensional Confirmation
Establish ID, OD, thickness, flatness and other critical dimensions.
Prototype
Produce a trial batch or sample for customer evaluation.
Assembly Validation
Check fit, installation and interaction with the mating component.
Specification Approval
Confirm material, dimensions and inspection criteria.
Mass Production
Manufacture according to the approved specification.
Packaging & International Shipping
Graphite sealing rings are vulnerable to edge chipping, cracking, and surface damage—especially when thin or precision-machined. Our packaging is designed to prevent movement and impact during transit.
Packaging Options
Individual protective packaging, internal separators, anti-impact cushioning, reinforced cartons, plywood cases for larger orders, customized labels, and packing lists.
Shipping Methods
Sea freight, air freight, or express—selected per order quantity and delivery urgency.
FAQ
